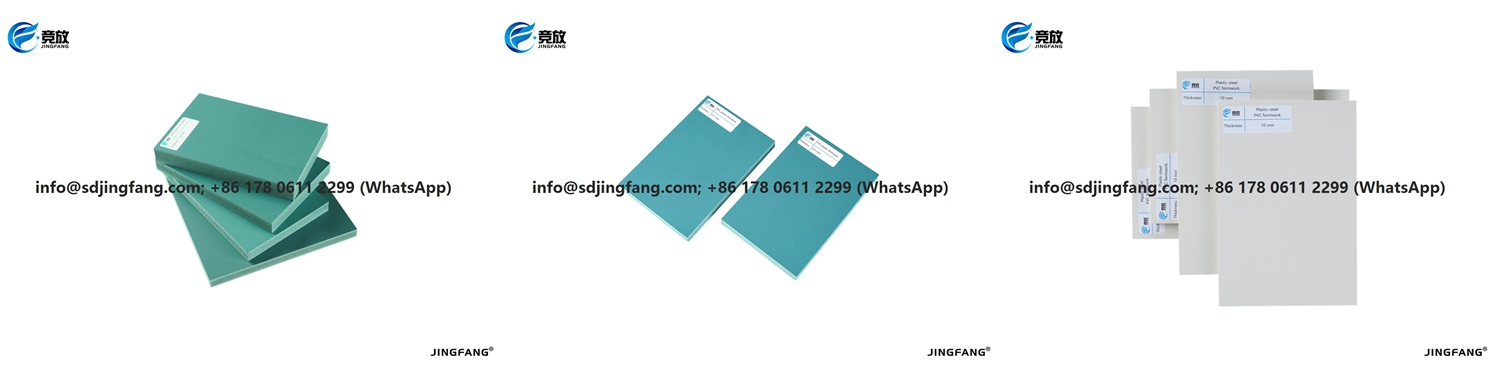

What is PVC plastic board formwork ?

PVC plastic board formwork is a new type of China new plastic concrete shuttering for construction, which is made of Virgin & Pure UPVC only. It has same sizes as plywood, can reuse ≥ 50 times, waterproof, anti-flaming, no need releasing oil, UV resistant, etc.

PVC plastic board formwork was created by 10+ years ago, under the background of civil engineering worldwide trend "replacing wood with plastic", is a good choice to substitute the traditional formwork materials including plywood /wood /bamboo formworks, so as to greatly save the forest sources.

Same as regular formwork products, PVC plastic board formwork can be applied multiply, including wall formwork, slab/floor formwork, column formwork, stairs, tunnel formwork, bridge formwork, etc.

Parameters of PVC plastic board formwork:

Characteristics and applications of PVC plastic board formwork:

1. Reuse 50+ times, saving much project costs

JINGFANG® PVC plastic formwork can be reused ≥50 times in plain wooden structures,  and much more times in metal frames. This means the lifespan of 1 piece of JINGFANG® PVC plastic board formwork equals to ≥ 5~10 pieces of plywood formwork.

2. Same dimensions & applications as plywood formworks

JINGFANG® PVC plastic board formwork has the same dimensions and applications as conventional plywood formwork, including for wall, slab, column, stairs, tunnel, bridge, etc.

Its usage in preparing, handling, installation and assembly are same as plywood formwork. No changes to the formwork structure and construction process.

3. No need special tools and trainings

JINGFANG® PVC plastic board formwork has excellent screw holding strength, can be freely saw, cut, drill, nail, and shaped into any sizes as desired.

Workers may prepare the JINGFANG® PVC plastic board formwork as the same way that they use conventional plywood formwork.

No additional trainings or special tools required for workers to handle the product.

4. Uniform foaming technology, never delaminates

JINGFANG® PVC plastic board formwork adopts the foaming technology, not layerinng or laminating. It will never delaminate even after reusing 50+ times. So it can be reused continually unless it is badly cracked by violent construction.

5. Smooth concrete surface, guarantee project quality

Our mirror surface technology ensures JINGFANG® PVC plastic board formwork smooth surface, and is able to maintain its smoothness even after reusing for 50+ times. This helps ensuring all the wall surface in uniform smoothness across first to top floor.

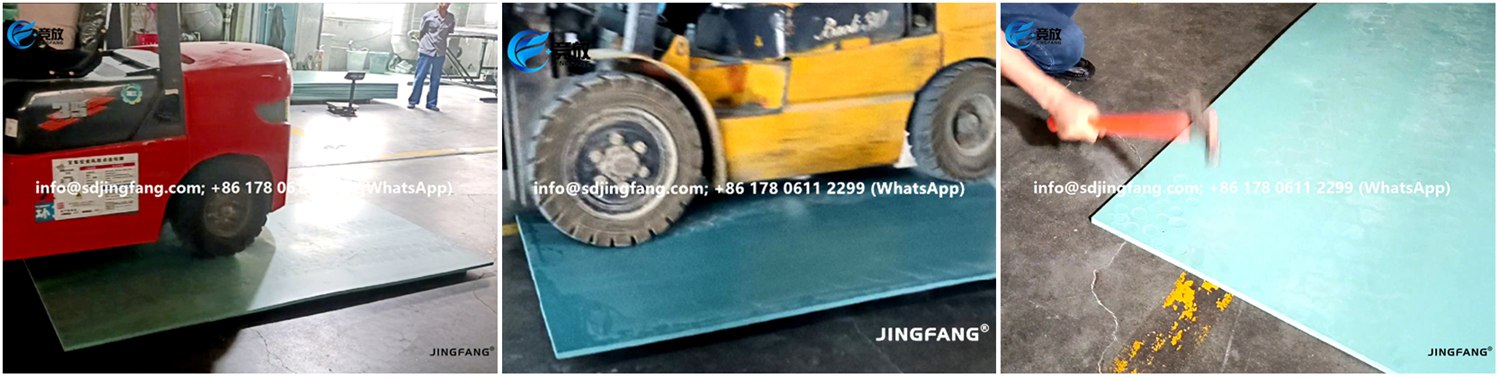

6. High Load-bearing Capacity

JINGFANG® PVC plastic board formwork has good surface hardness with excellent strength in during high impact. This is another important reason why it can be reused 50+ times in a plain wood support structure.

7. High Bending Strength and Elasticity

JINGFANG® PVC plastic board formwork has excellent bending strength. You can curve it freely in your round formwork structure.

Even in winter, JINGFANG® PVC plastic board formworkmaintains its elasticity in bending. Non-fragile.

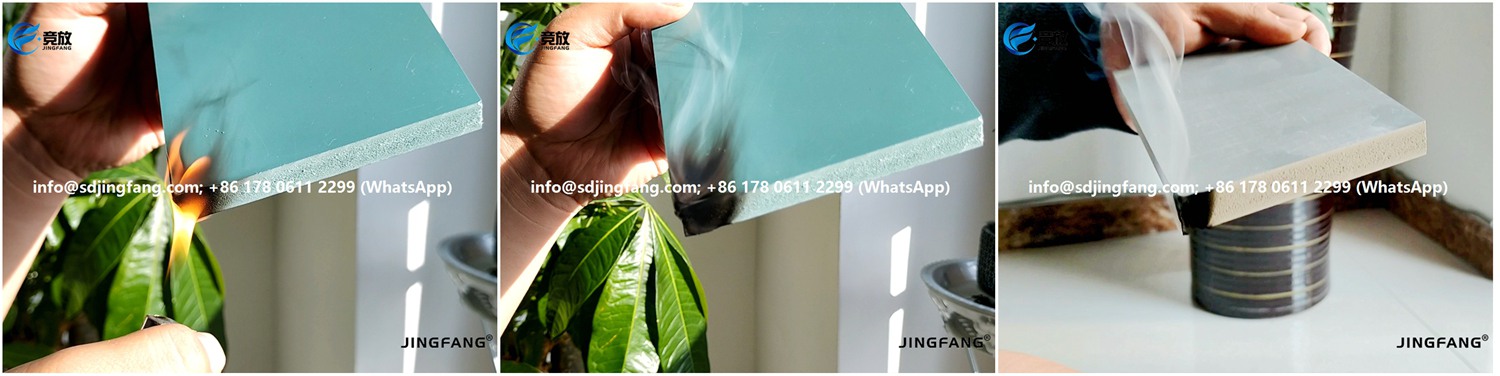

8. Anti-flaming, avoiding hidden safety hazards

With pure UPVC as the only main material which accounts for over 95%, JINGFANG® PVC plastic board formwork is anti-flaming without hidden safety hazards.

This effectively reduces the fire risk and limits the spread of fire.

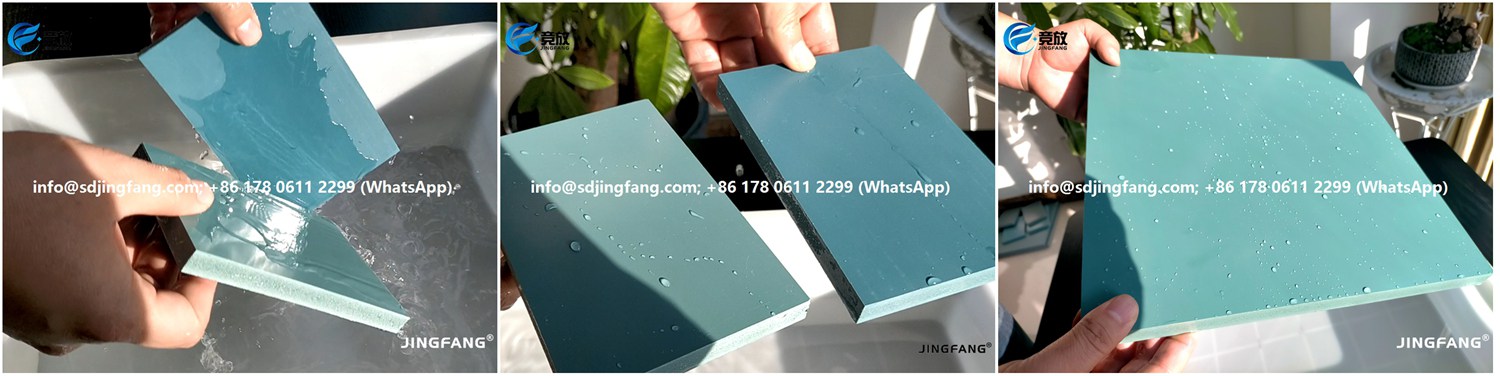

9. Weatherproof and 100% Waterproof

JINGFANG® PVC plastic board formwork is 100% waterproof. So it is durable enough to be used, stored or placed at outdoor environment without the need of any extra protection, including under the weather of raining, snowy, in Summer or Winter.

10. UV resistant, Chemical Resistant Against Harsh Environment

UPVC is the upgrading of general PVC. It has over 4 times better outdoor anti-aging performance than general PVC,  with lifespan for tens of years. It accounts for over 95% in our product formula, so can guarantee JINGFANG® PVC plastic board formwork the qualified resistance against UV, temperatures and weather.

11. High Temperature Resistant and Freezing-thawing Resistant

JINGFANG® PVC plastic board formwork has good resistance against temperature. No shrinkage, bulge, or deformation under -25℃ to +70℃ . It can be exposed to any weather, raining or snowy, summer or winter. No need to worry about it being weaken by the sunshine or temperature.

12. No Need Releasing Oil, Easily Releasing and Cleaning

With sustaining smooth surface and excellent hardness, JINGFANG® PVC plastic board formwork doesn't stick concrete stubbornly, which ensures it to be easily cleaned with water+mop.

No releasing agent or oil is required before and during concrete demoulding process. Easily cleaning.

Easily demoulded by hands, leaving the wall surface smooth and glossy without the need of secondary plastering.

13. 100% Recyclable with Extra Returns

UPVC is one of the most popular plastic materials in the world. It is easy to resell the used JINGFANG® PVC plastic board formwork to related plastic industries, with higher returns than used plywood formwork. Such as PVC tubes, plastic furniture, cabinet, box, etc.

For full sizes, you can reuse them continually or rent out to other projects;

For small parts, you can can re-sell them to related industries.

14. Environmental friendly, non-plasticizer, formaldehyde-free

JINGFANG® PVC plastic board formwork is made of UPVC material only, never add any wood powder. It adopts foaming technology, not layer or laminated, no any glue is used in manufacturing.

So it is environment friendly, doesn't discharge any infectant or toxic gas. It is in accordance with environmental trend of the earth.

How to assemble PVC plastic board formwork?

Tip 01: Edge distance of nailing/screwing

To prolong the life-span of product, we suggest to leave at least 3-5cm distance from the edge when nailing/screwing on it.

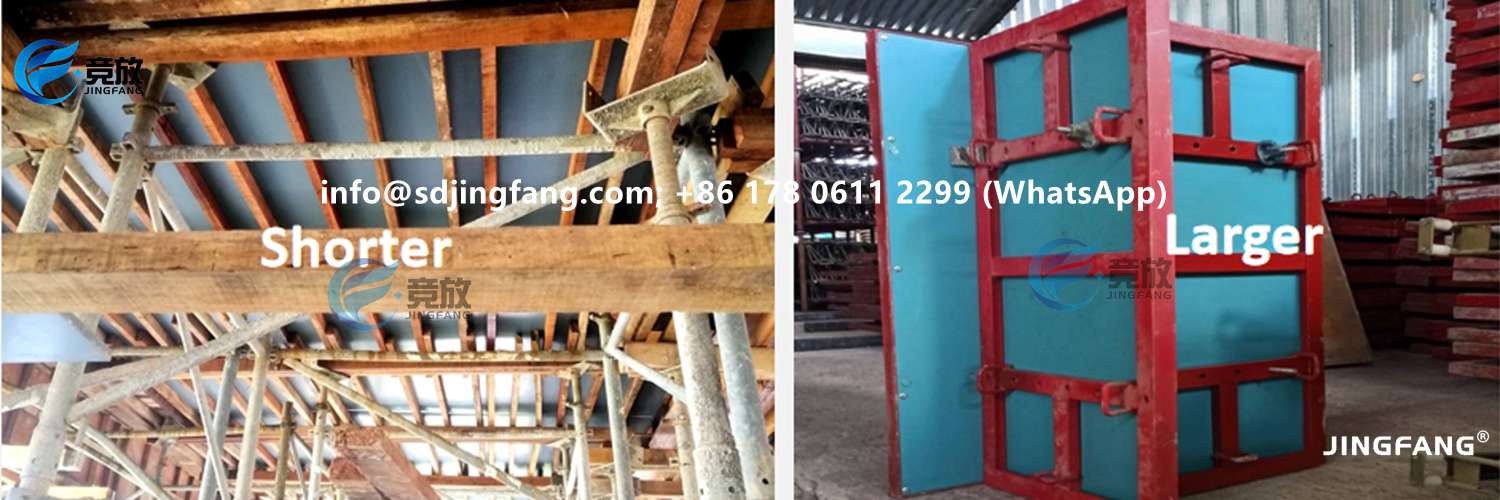

Tip 02: Props distance

In general, we suggest the same props distance as the plywood formworks which you are using. But, it differs a bit according to the frame structures and concrete thickness. The stronger structures, the shorter props distance.

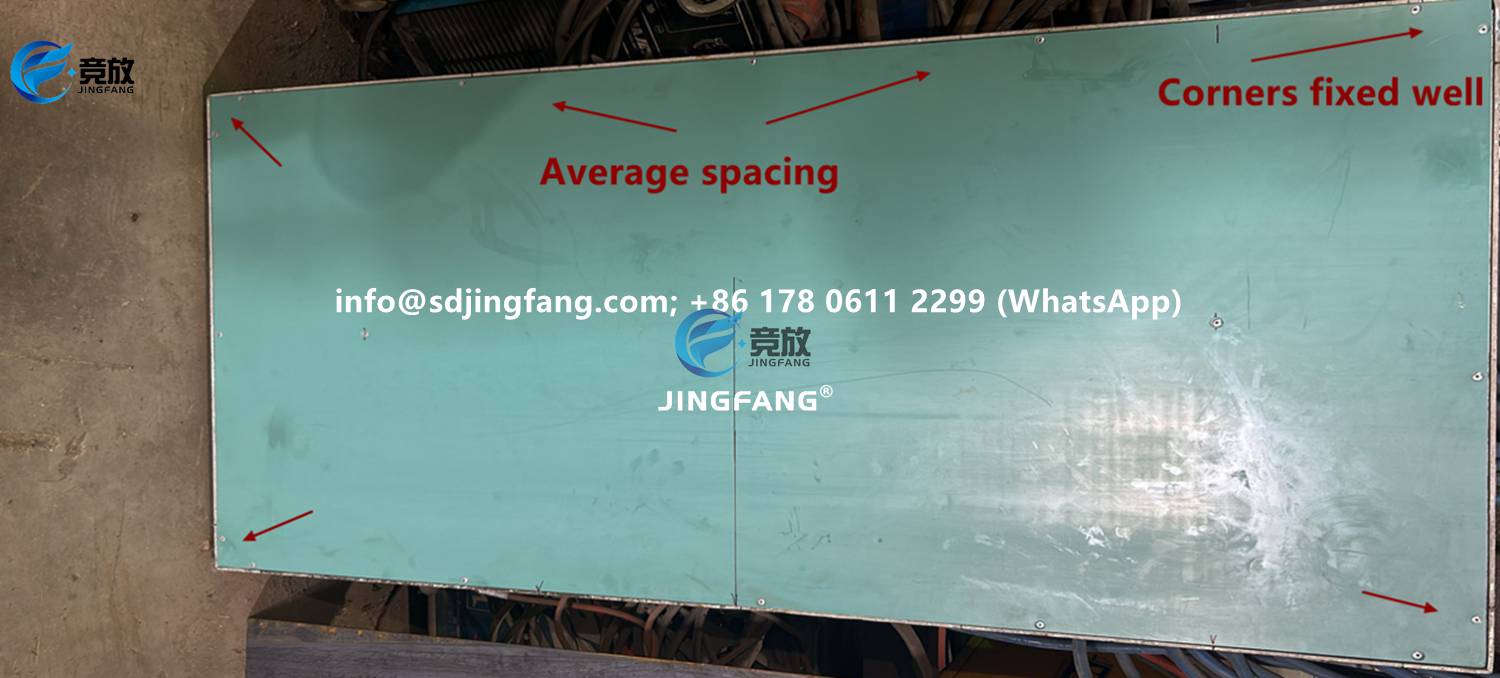

Tip 03: Nailing/screwing distance

Same as the general requirements for all formwork materials, to ensure the average load-bearing capacity of the entire sheet, in addition to the appropriate props distance, we also recommend maintaining an average spacing of nails/screws, such as 30 cm. Especially the corners should be fixed well with nails/screws. Or you can keep the regular way that applied to your structures.

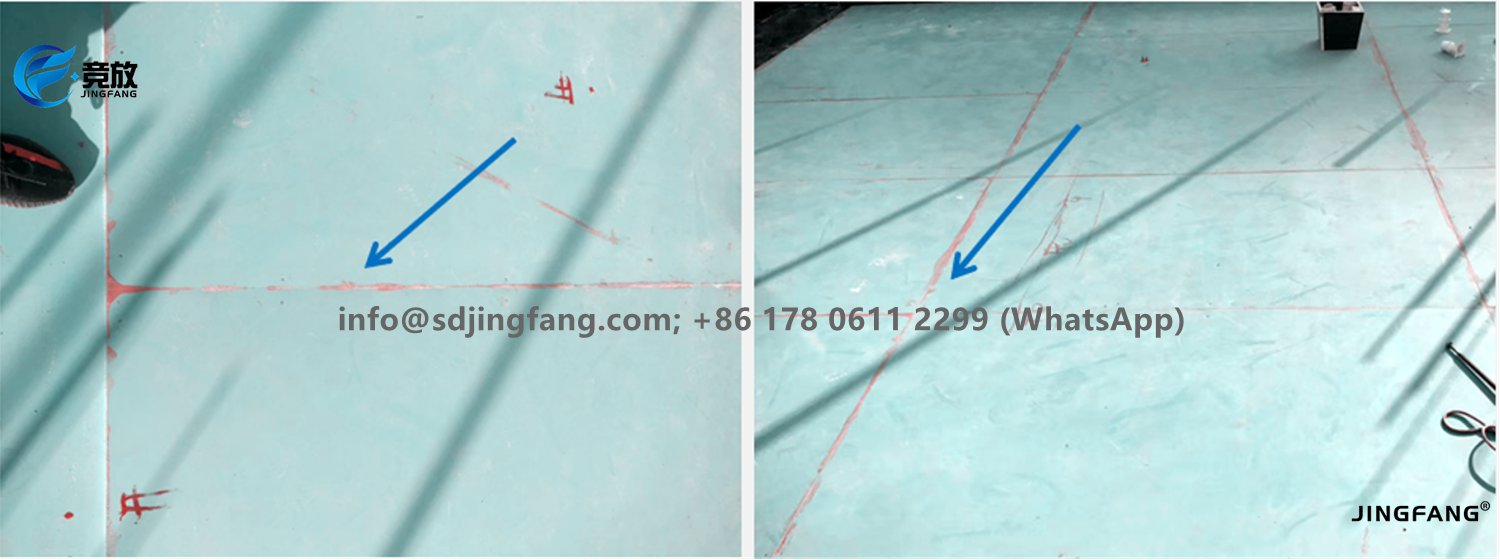

Tip 04: Joint treatment

If you want to avoid the concrete sticking into the joint, you can paint the joint. The regular painting is workable enough. Some of our clients use the gel coat.

Tip 05:  Repair the holes of nails or bolts

For the nails holes: normally such holes don’t leak concrete, so not necessary to fix it. If you have strict requirements, you can use glue or wax to cover them.

For the bolt holes: plastic plug or adhesive tape. Another solution: normally the bolt holes of one single project have same diameters and locations. So some clients cut formworks sheets into small round pieces with 1mm smaller diameter, and then insert them into the bolt holes.

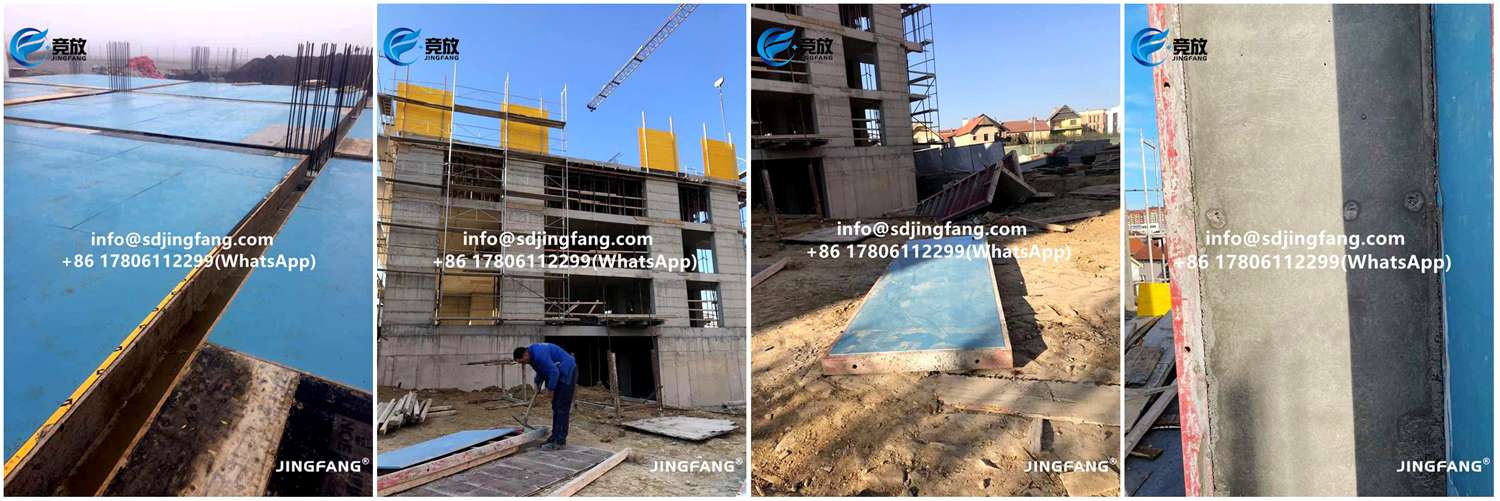

Construction applications of JINGFANG® PVC plastic board formwork

Same as regular formwork products, PVC plastic board formwork can be applied multiply, including wall formwork, slab/floor formwork, column formwork, stairs, tunnel formwork, bridge formwork, etc.

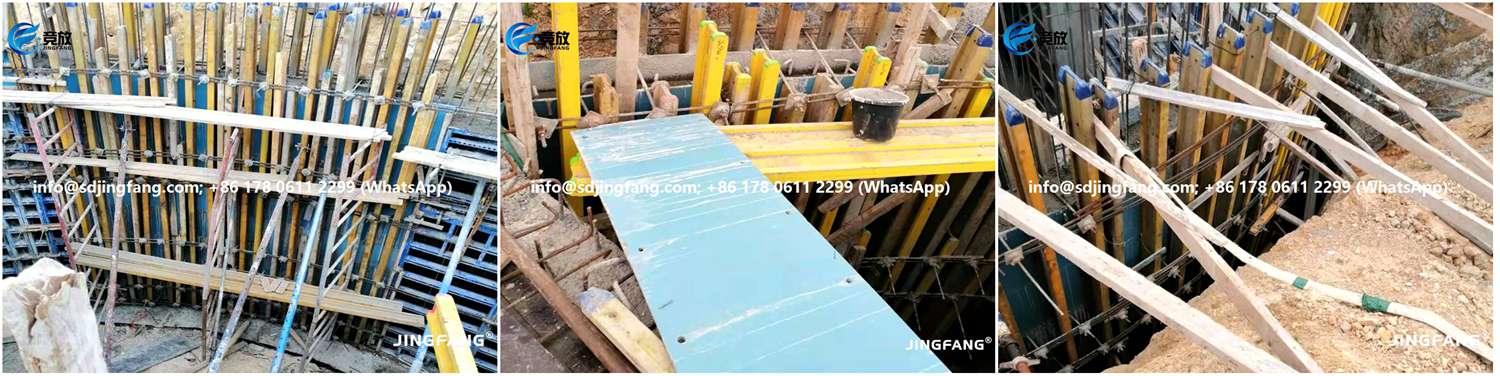

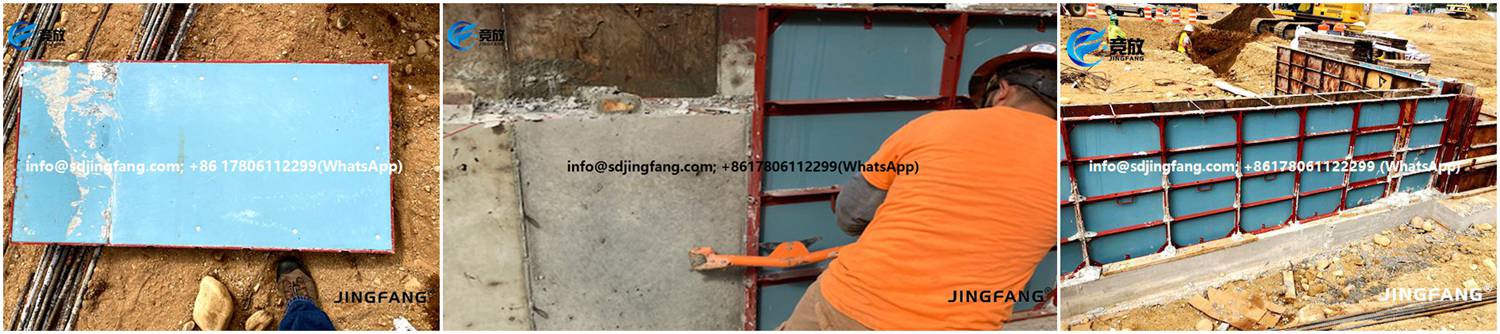

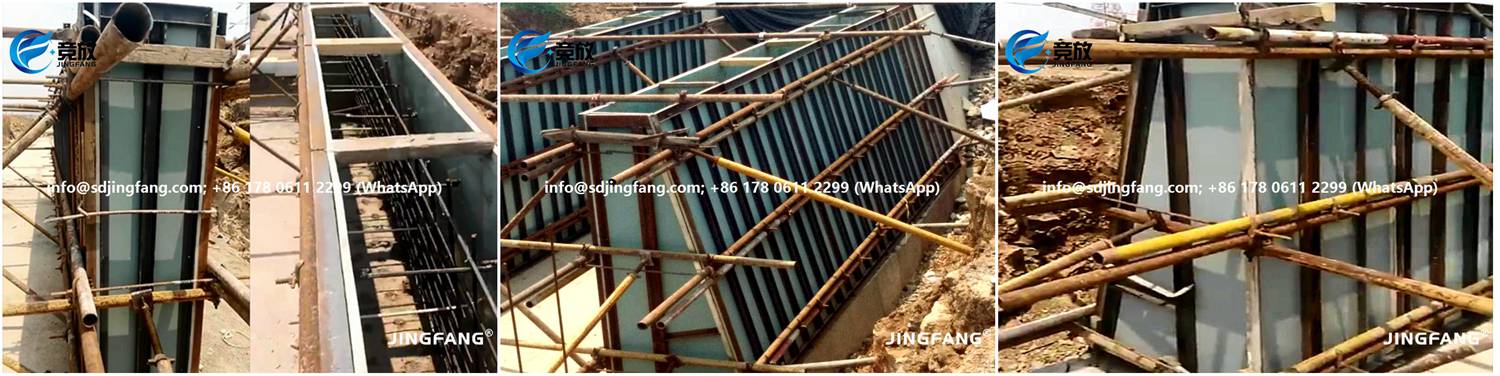

■ Wall formwork

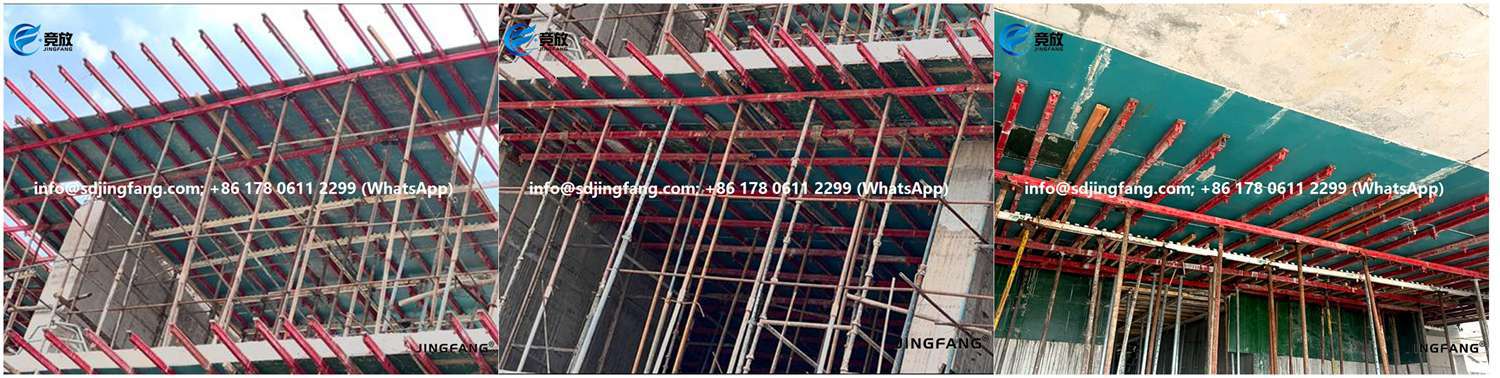

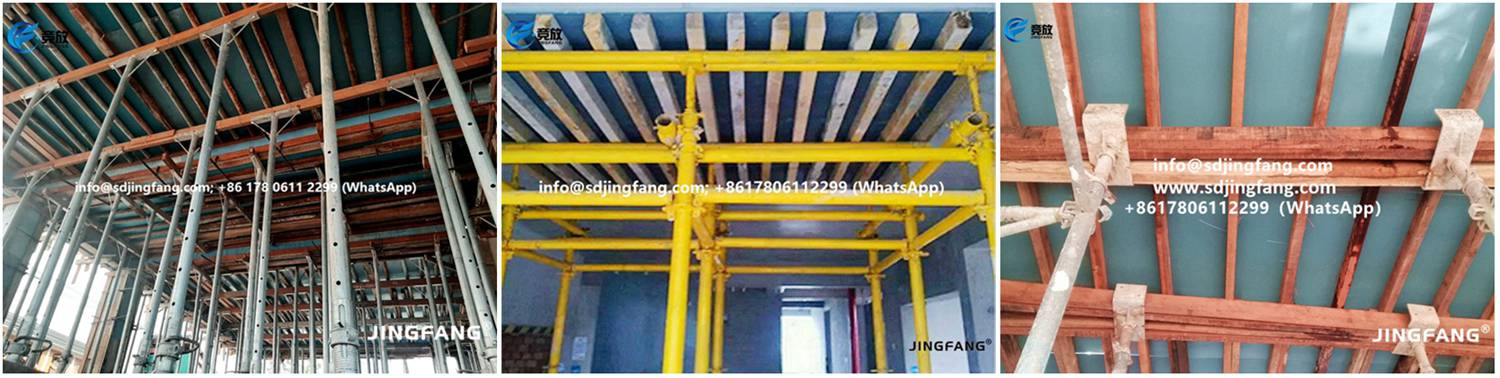

■ Slab formwork

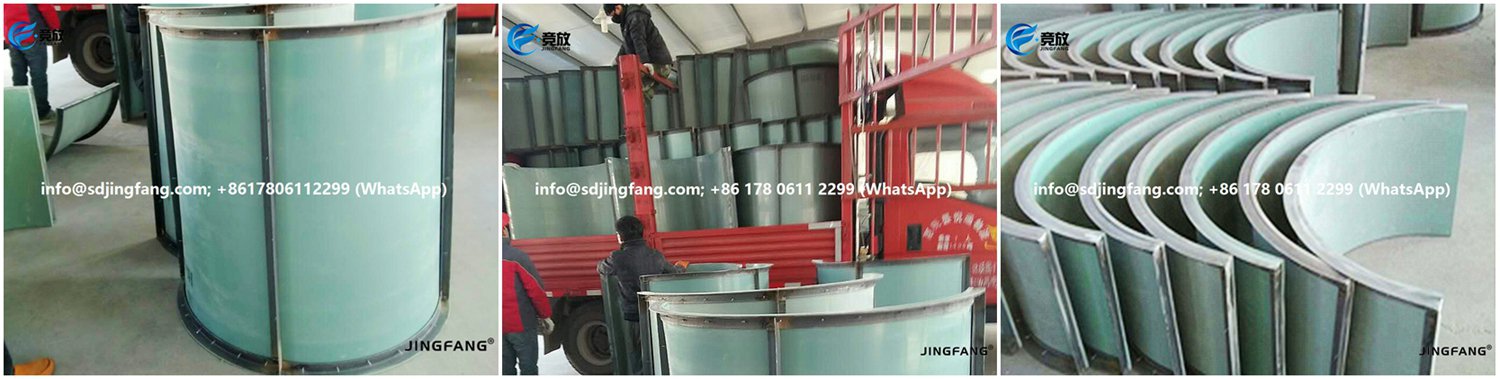

■ Round column formwork

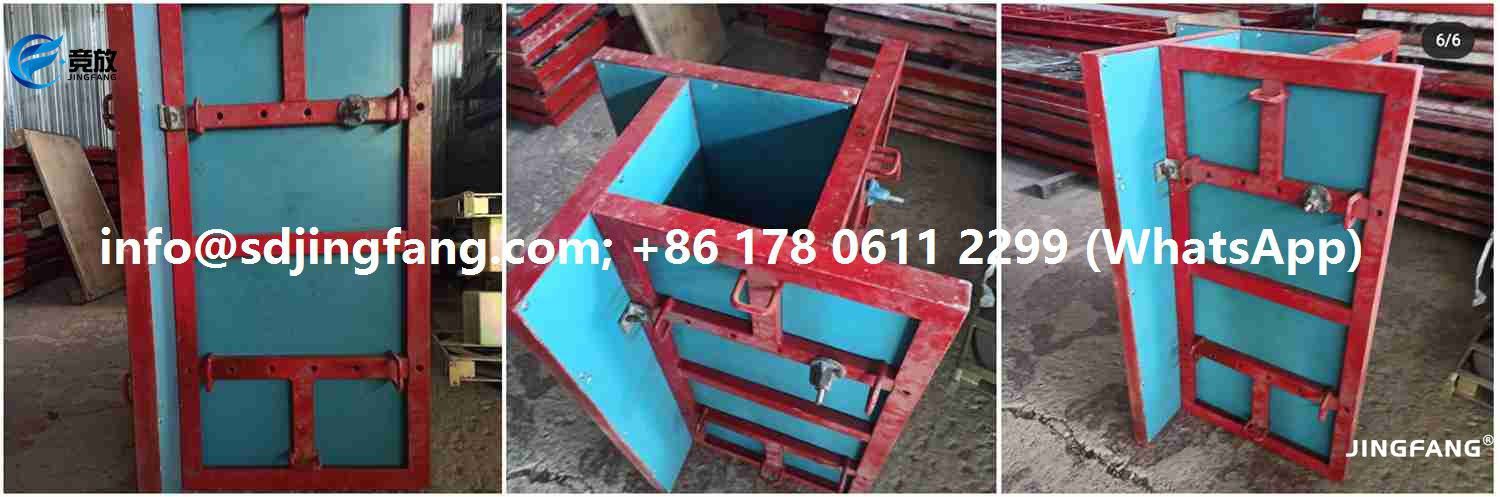

■ Square colum formwork

■ Stair formwork

■ Tunnel formwork

■ High-speed way formwork

■ Bridge formwork

Using PVC plastic board formwork, what costs can save for your projects?

With JINGFANG® PVC plastic board formwork, you can save much costs, such as following:

◆ Reuse ≥ 50 times in plain wooden structures, much more in premium structures, saving formwork cost.

◆ No need releasing oil, saving oil cost.

◆ Doesn't stick much concrete, saving cleaning and labor cost.

◆ Easy to clean, mop with water is enough to clean the used PVC plastic board formwork, saving labor cost.

◆ Foaming technology and excellent surafce hardness, never delaminates, saving formwork cost.

◆ Antiflaming, Waterproof, UV resistant, Alkali / Chemical resistant, Moisture resistant, saving curing cost.

◆ 100% recyclable. You can get extra benefit returns by re-sell the used PVC plastic board formworks to related industries.

◆ Smoothness and hardness ensure the constant and uniform project quality from the first to top floor, brings you more projects.

Why choose JINGFANG® PVC plastic board formwork?

Shandong Jingfang Import and Export Co., Ltd. is the only factory who persistly adopt "Virgin & Pure UPVC" as the solo main raw material to manufacture PVC plastic board formwork all along.

◆ Virgin & pure UPVC as the solo main raw material

◆ 10+ years manufacturing and export experience

◆ Strict QC every 1-2 hours during manufacturing

◆ One of the earliest manufacturers, the only single-minded manufacturer

The "Virgin & Pure UPVC" accounts for more than 95% in our formula (the rest 4~5% is for necessary additives), and we never add any recycled PVC/PP/ABS materials, so can guarantee the qualified strength, elasticity modulus and UV-resistance of PVC plastic board formwork, thoroughly solve the deformation/cracking/bending problems of unqualified products.

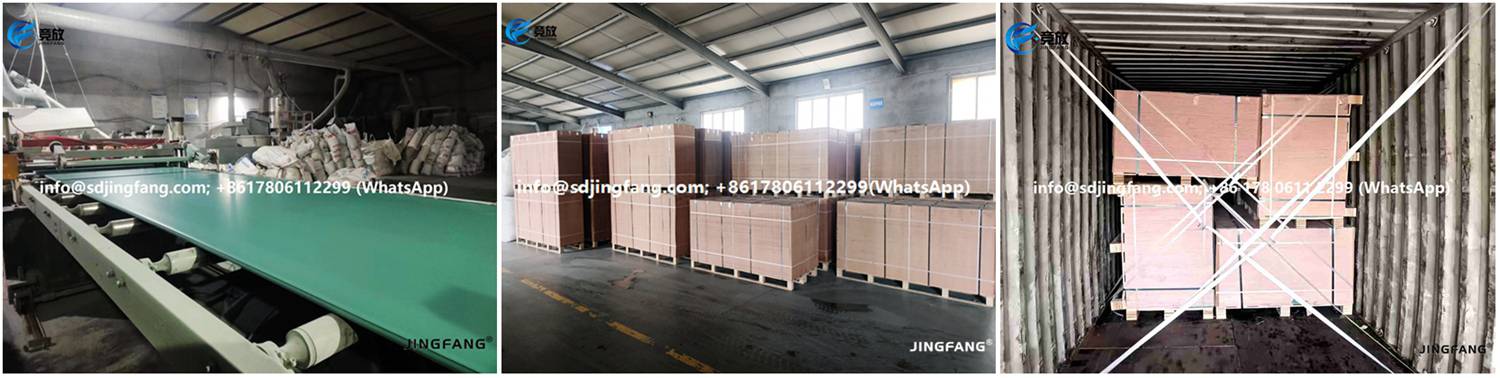

With advanced automatic production lines, professional production team and independent international trading team, we promise you the best product & import service and are 100% confident being one of the most professional Chinese factory manufacturing UPVC plastic board formwork.

For more details, freely contact with us. Our trading team will reply you timely within 24 hours.
