18mm JINGFANG® UPVC plastic formwork , abroad feedback:

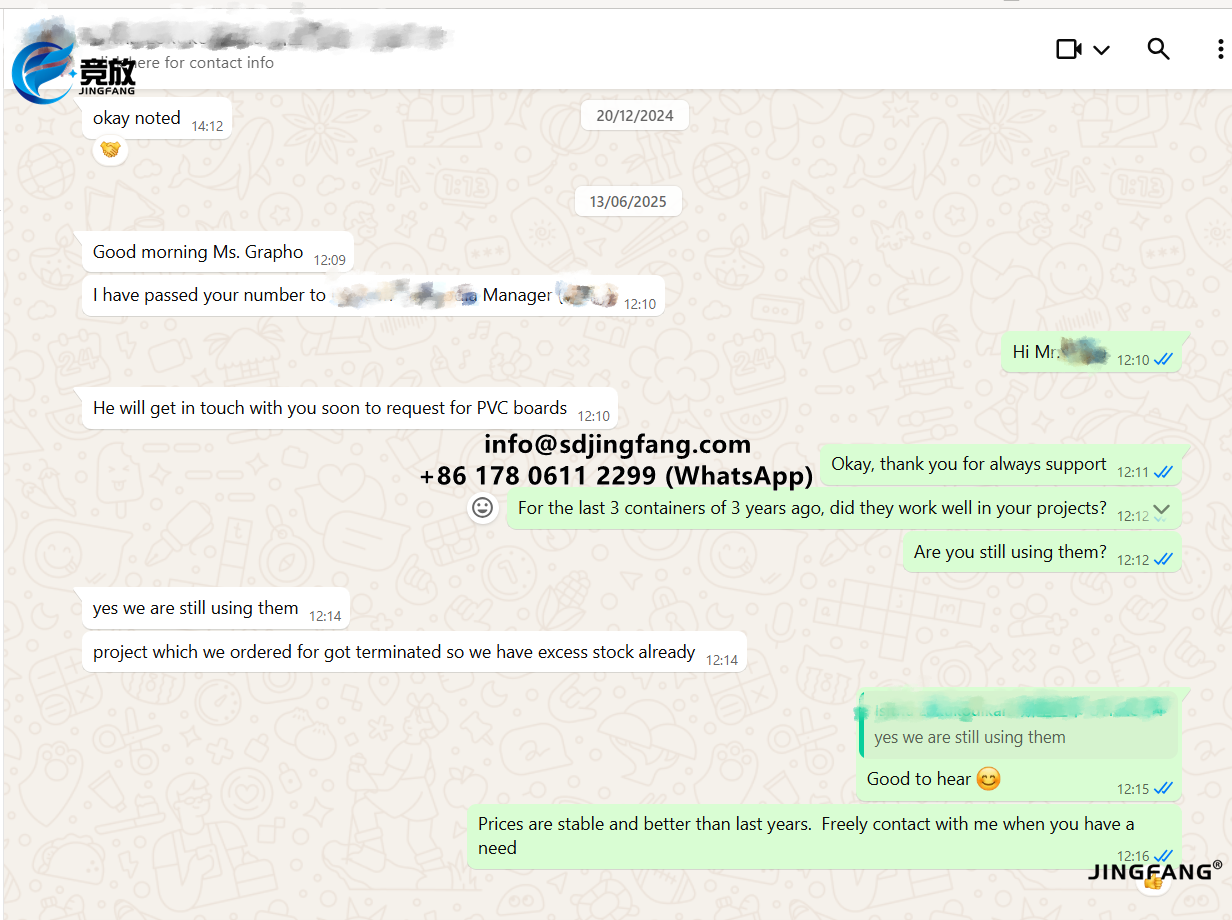

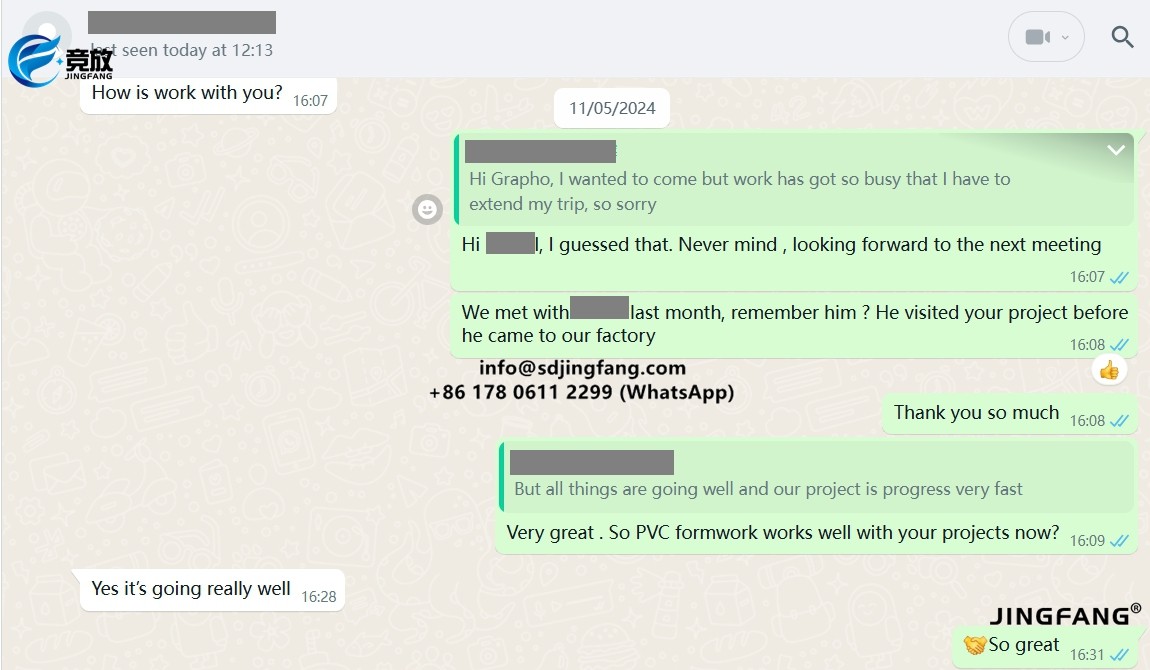

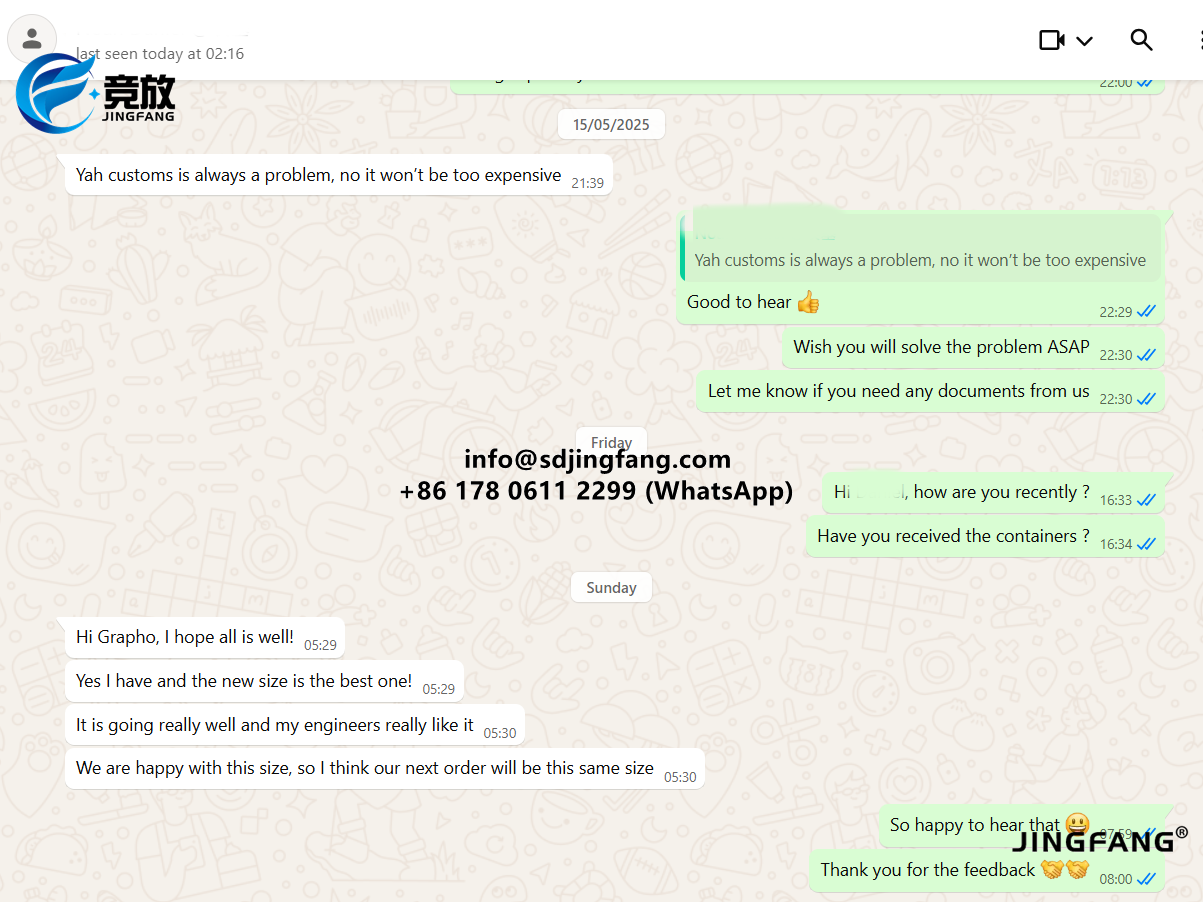

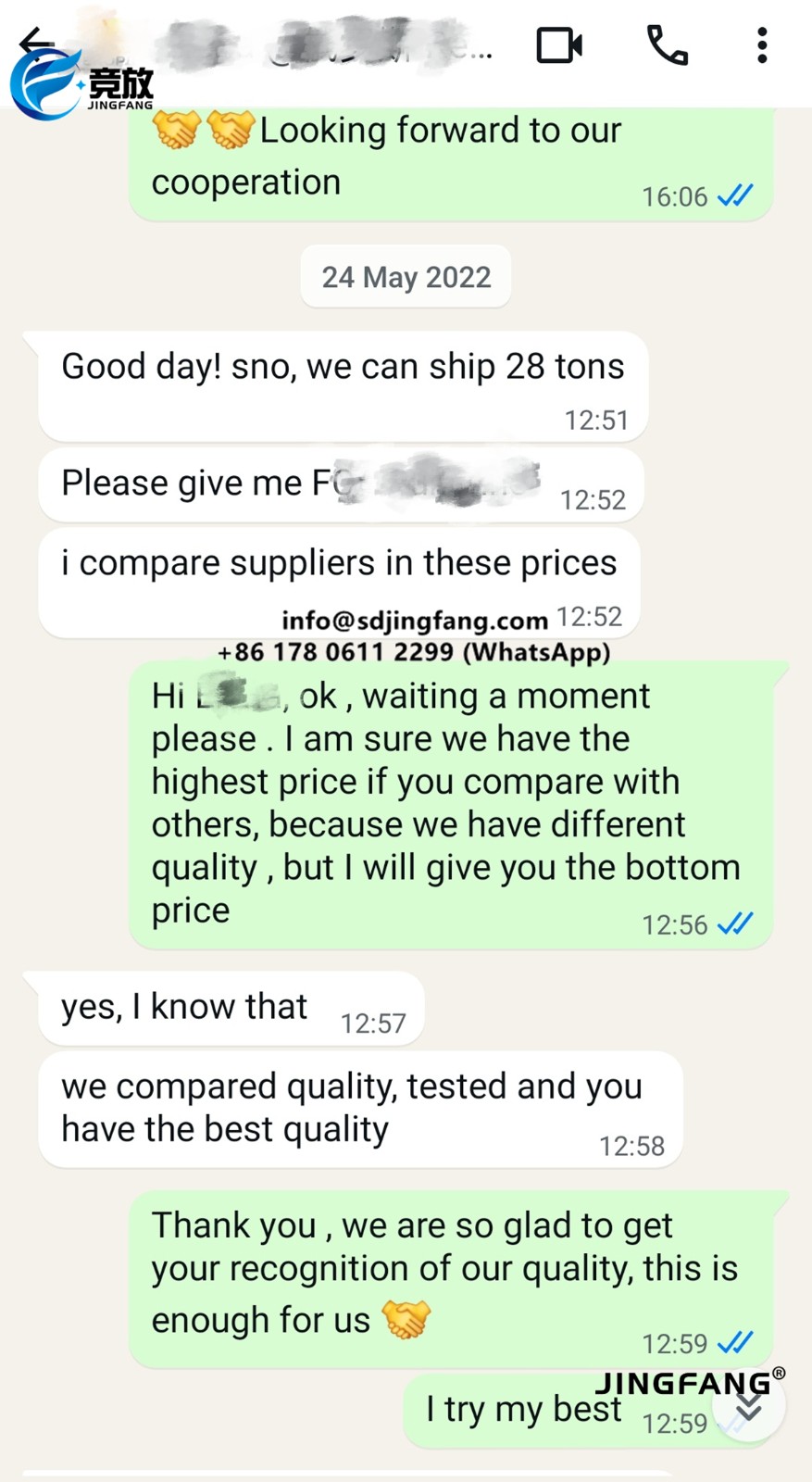

This client made load testings UPVC plastic formwork for 10 days, during which the load-bearing weight is 400kg. The sheet size is 500x1000x18mm. See the feedbacks:

And there were some photos from him:

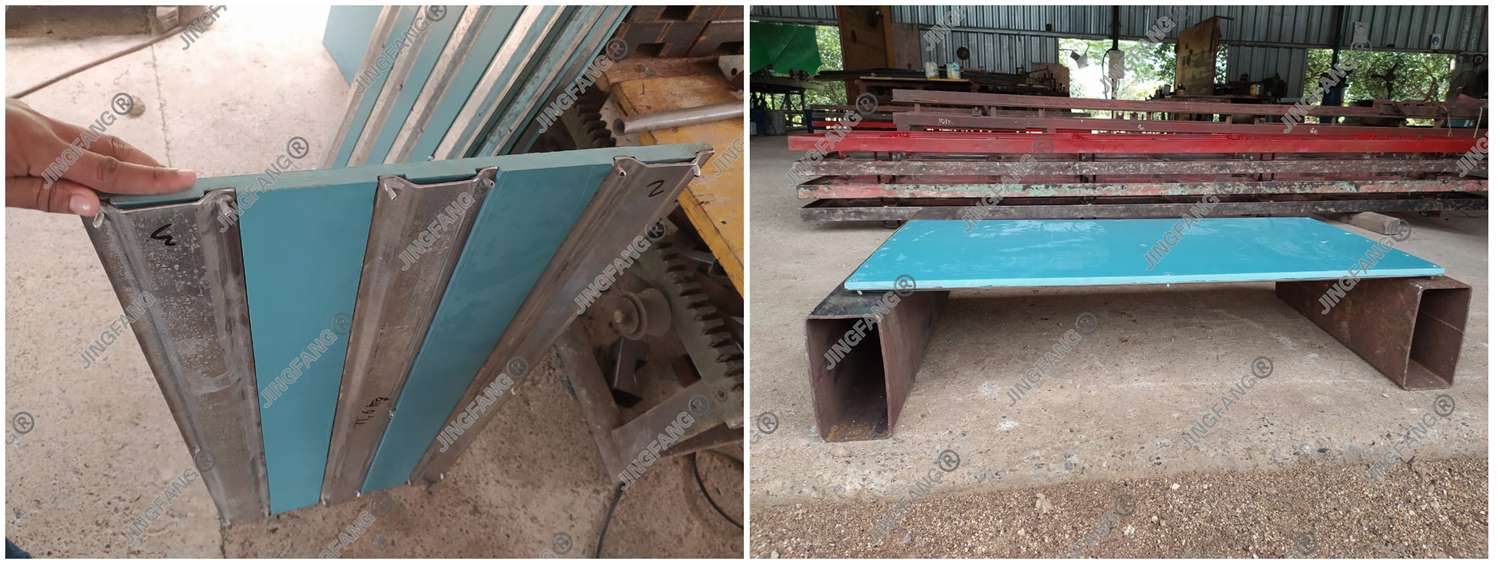

01. The structure and beam distance:

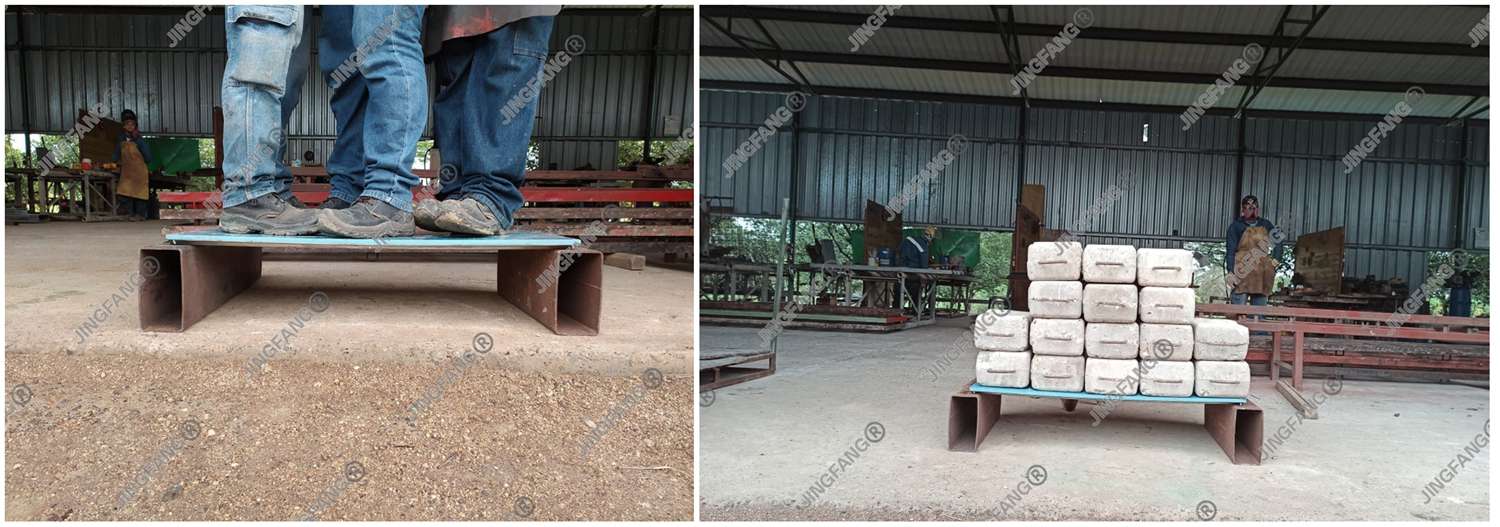

The load-bearing for single sheet:

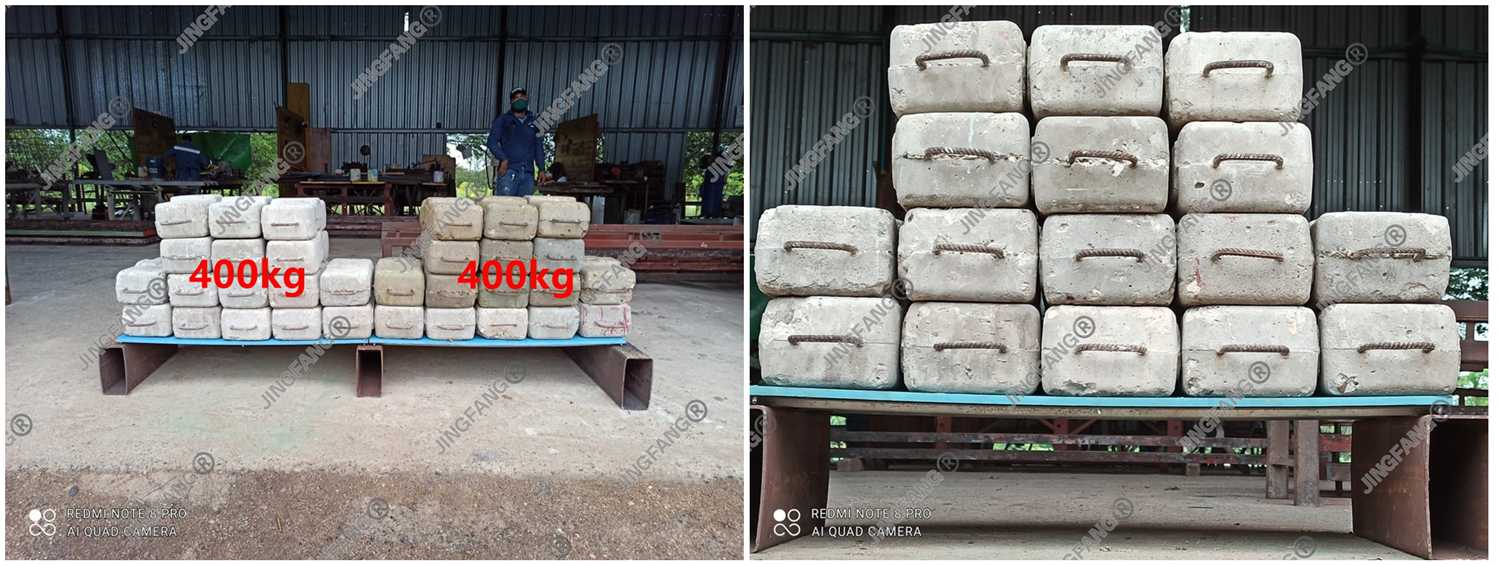

The load bearing for two sheets, each loaded with 400kg:

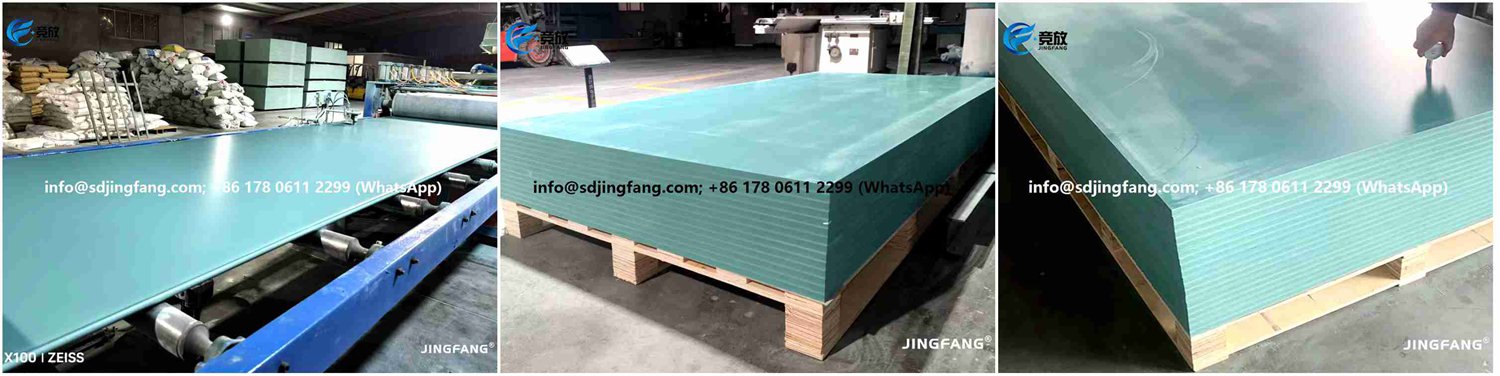

What is JINGFANG® UPVC plastic formwork?

JINGFANG® UPVC plastic formwork is a new type of plastic formwork to substitute plywood formwork. It has same sizes and applications as plywood formwork, but can reuse ≥ 50 times in plain wooden structures.

Especially, it can match better with metal frame structure, with which it can be reused for much more times, as the metal system can provide good protection for formwork panels.

Why do we use UPVC as the solo raw material? What is UPVC?

UPVC, the full name is Unplasticized Polyvinyl Chloride, is also named Plastic Steel, or PVC-U.  It is the upgrading of general PVC that removes plasticizers to achieve better engineering properties, so as to retain the rigid chain structure, and increase the strength.

It strictly adheres to the "Three-No-addition" principle: no plasticizers, no heavy metal stabilizers, no calcium carbonate fillers.

So it's environmental friendly, corrosion resistant, formaldehyde-free, has excellent UV resistance performance and outdoor ageing resistance, is widely applied to windows /doors frames, construction, food-grade piping, and industrial sewage pipe, etc.

Since 10+ years ago, UPVC has been proved to be the most qualified and the optimal raw material selection for PVC plastic formwork, which is a well-known knowledge in this industry by every qualified manufacturer.

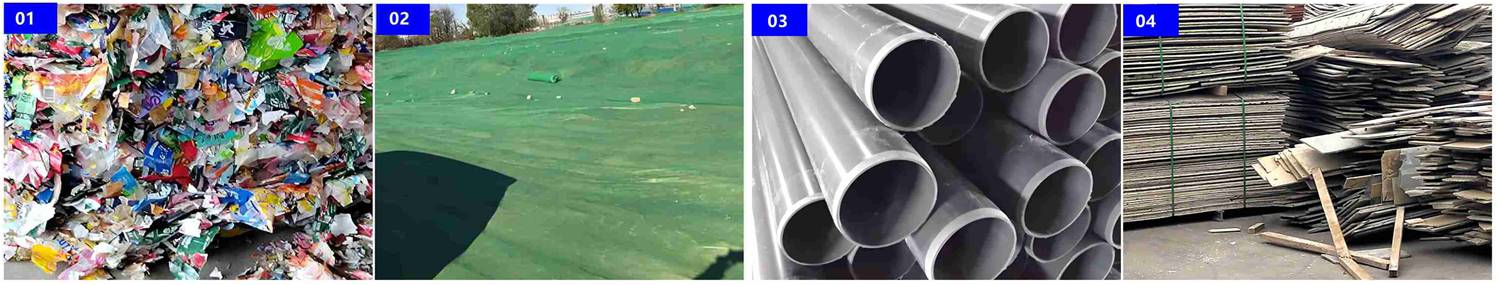

Except UPVC, there are other different plastic formwork materials including general PVC, PP, ABS in the markets.

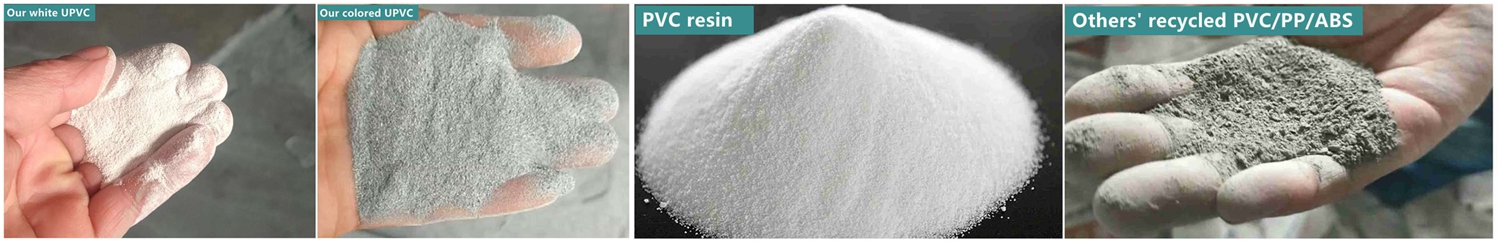

JINGFANG® UPVC plastic formwork adopts "Virgin & Pure UPVC" as the solo main raw material, which accounts for more than 95% (the rest 4~5% is for necessary additives),

And we never add any recycled PVC/PP/ABS materials, can guarantee qualified strength, elasticity modulus and UV-resistance, thoroughly solve the deformation /cracking /bending problems of unqualified products.

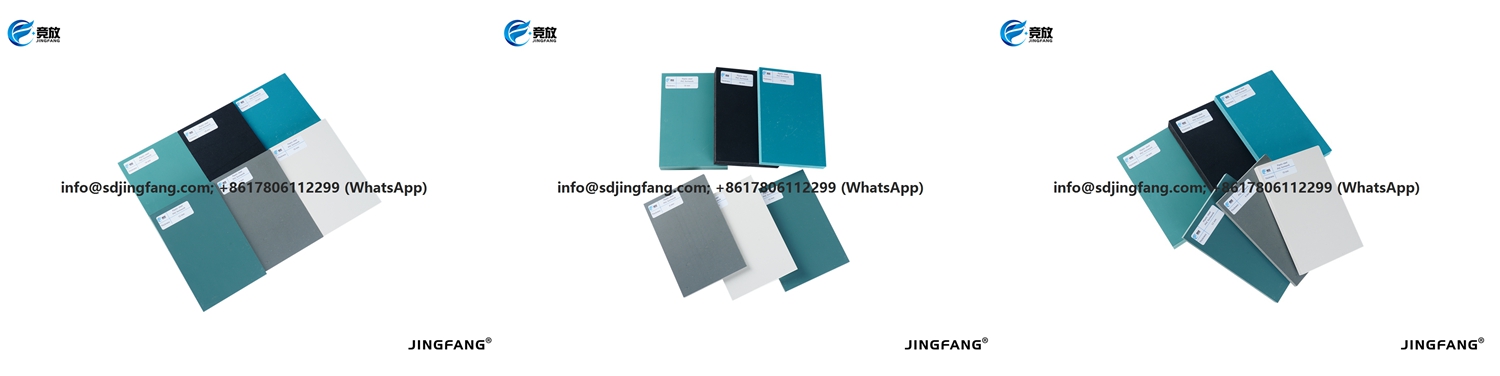

Specifications of JINGFANG® UPVC plastic formwork:

The 16 main advantages of JINGFANG® UPVC plastic formwork:

◆ Reuse 50+ times, saving much cost

◆ Anti-flaming

◆ Excellent bending strength

◆ High impact strength

◆ Waterproof and moistureproof

◆ Foaming technology, never delaminates

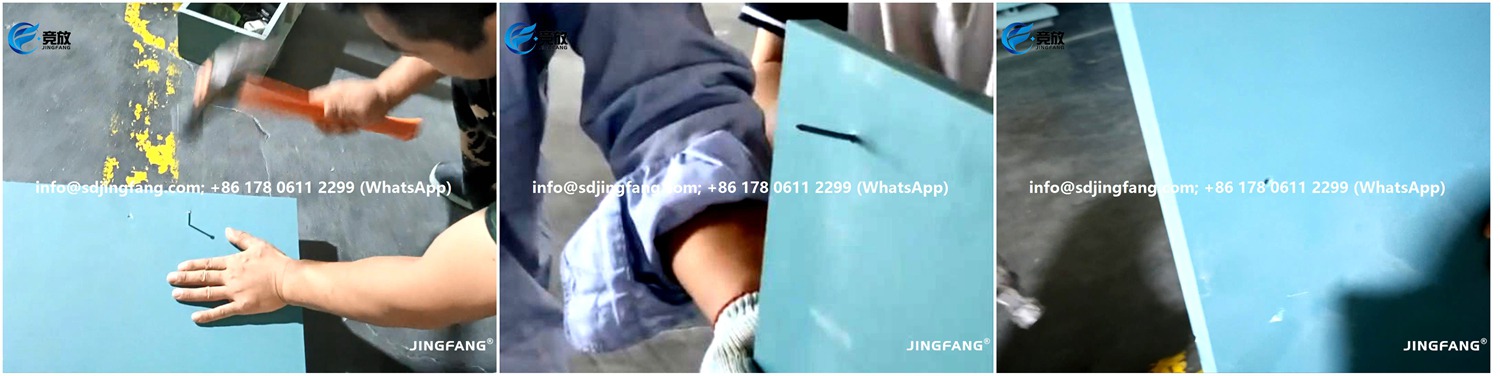

◆ Good nails-holding power

◆ Alkali/Chemical resistant

◆ Ageing resistant, temperature resistant and weatherproof

◆ Uniform smooth concrete surface

◆ No need releasing oil, easily releasing and cleaning

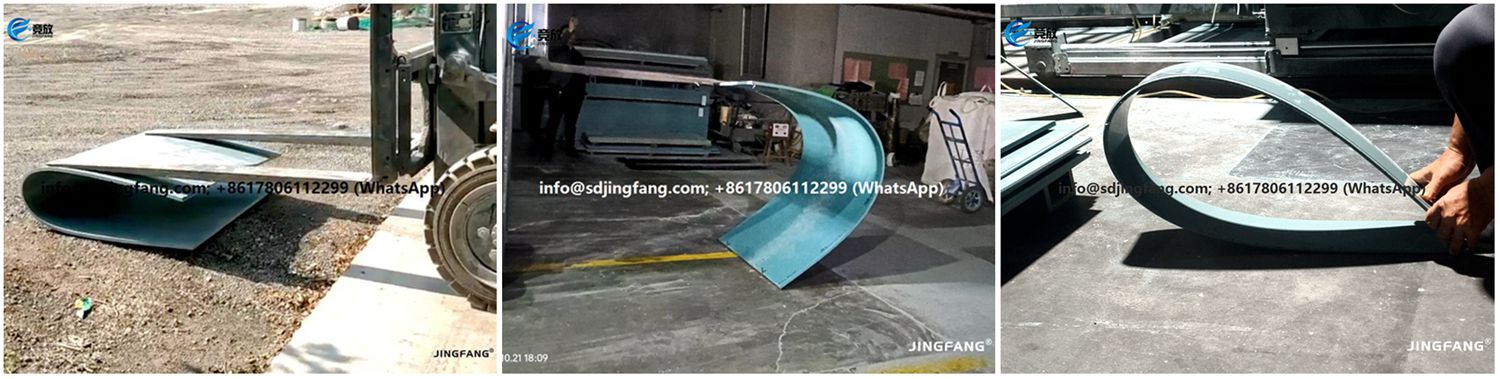

◆ Freely cutting/shaping/bending/punching

◆ Same sizes & applications as plywood formwork

◆ Matching well with different structures

◆ Environmental friendly, non-plasticizer, formaldehyde-free

◆ Recyclable with extra returns

The 8 types of costs that JINGFANG® UPVC plastic formwork can save for your projects:

1. Reuse ≥ 50 times in plain wooden structures, much more in premium structures, saving formwork cost.

2. No need releasing oil, saving oil cost.

3. Doesn't stick much concrete, saving cleaning and labor cost.

4. Easy to clean, mop with water is enough to clean the used UPVC plastic formwork, saving labor cost.

5. Foaming technology and excellent surafce hardness, never delaminates, saving formwork cost.

6. Antiflaming, Waterproof, UV resistant, Alkali / Chemical resistant, Moisture resistant, saving curing cost.

7. 100% recyclable. You can get extra benefit returns by re-sell the used UPVC plastic formworks to related industries.

8. Smoothness and hardness ensure the constant and uniform project quality from the first to top floor, brings you more projects.

How to install UPVC plastic formwork?

Tip 01: Nailing/screwing distance from the edges

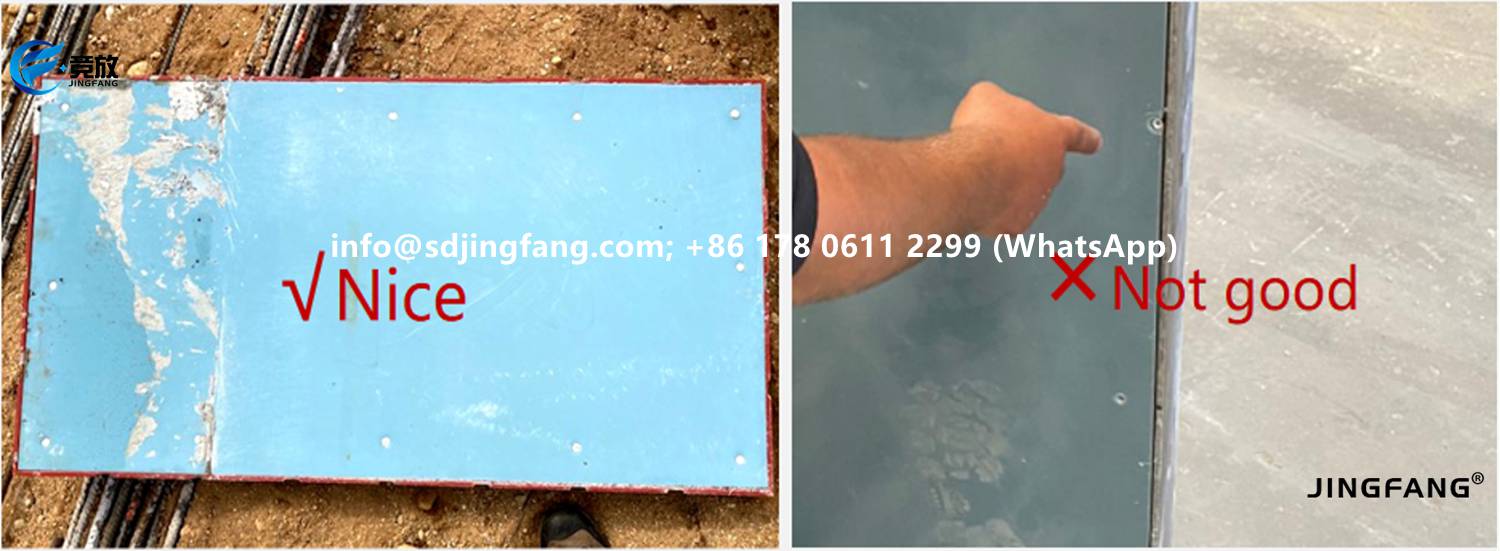

UPVC plastic formwork has good nail-holding power, but to prolong the life-span of , we suggest to leave at least 3-5cm distance from the edge when nailing/screwing on it.

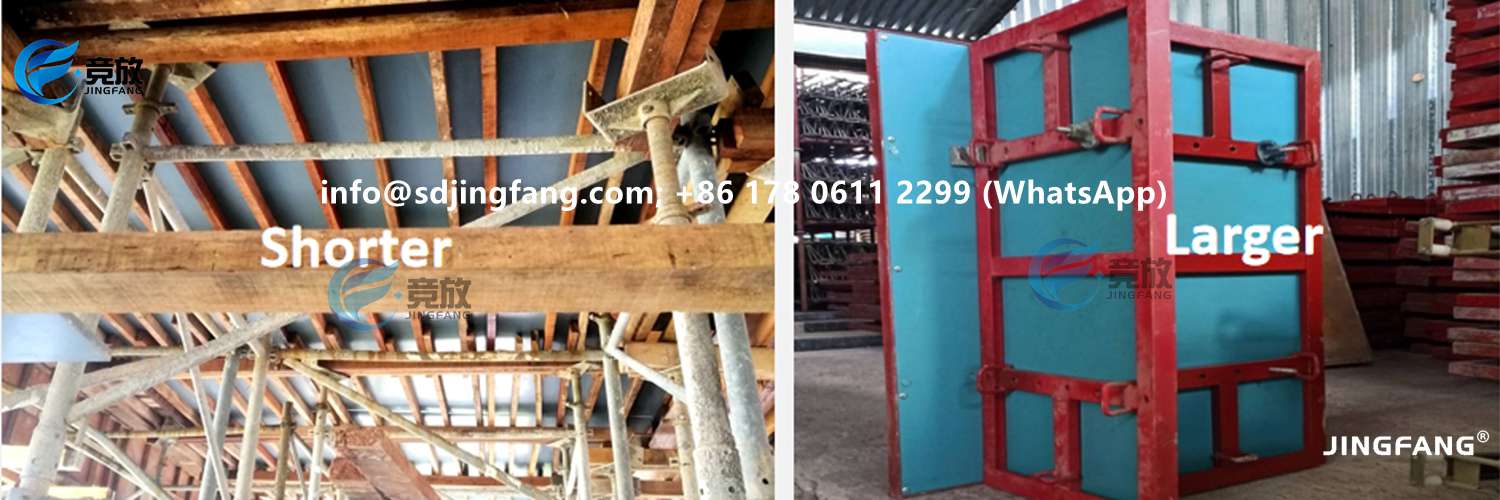

Tip 02: Beam distance of UPVC plastic formwork

For the beam distance, we usually suggest the same as the plywood formworks which you are using. And, it differs according to the frame structures and concrete thickness. The stronger structures, the shorter beam distance.

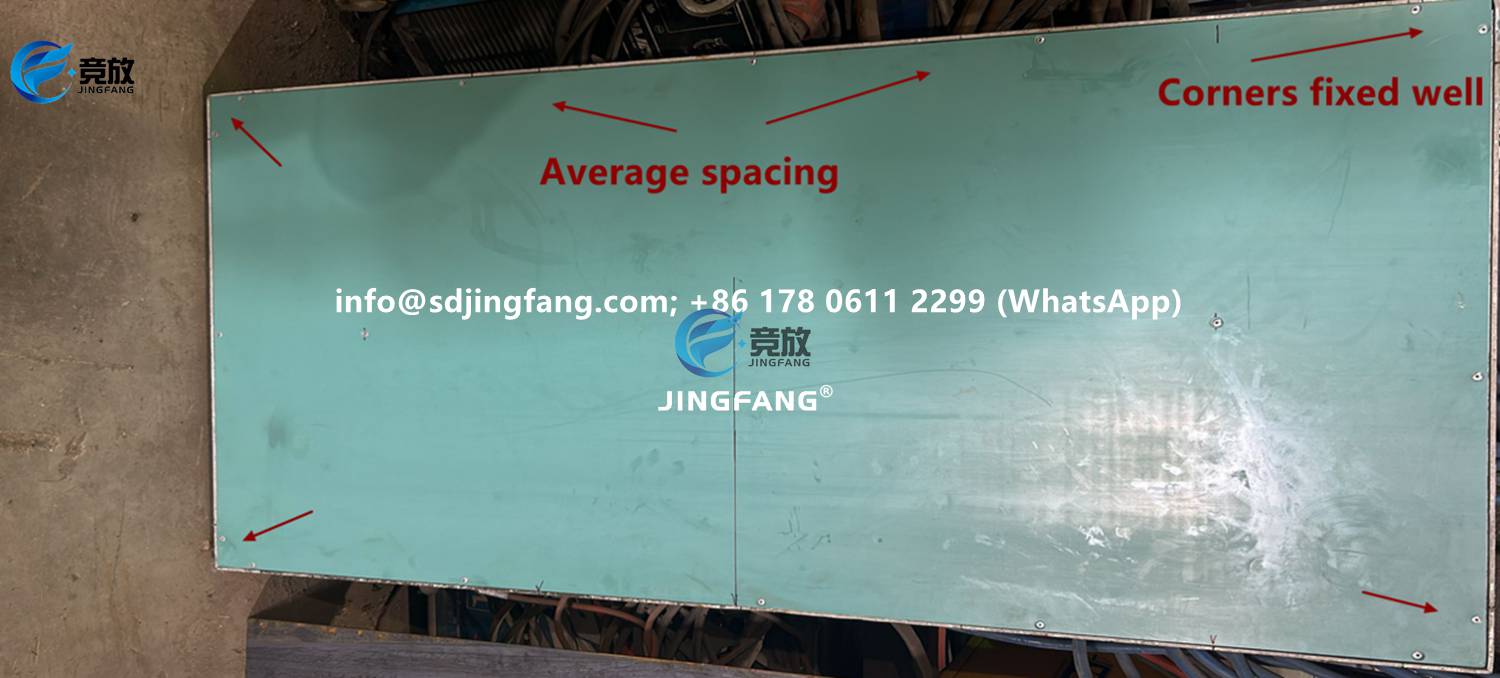

Tip 03: Nailing/screwing distance of UPVC plastic formwork

Same as the general requirements for all formwork materials, to ensure the average load-bearing capacity of the entire sheet, in addition to the appropriate props distance, we also recommend maintaining an average spacing of nails/screws, such as 30 cm.

Especially the corners should be fixed well with nails/screws.

Or you can keep the regular way that applied to your structures.

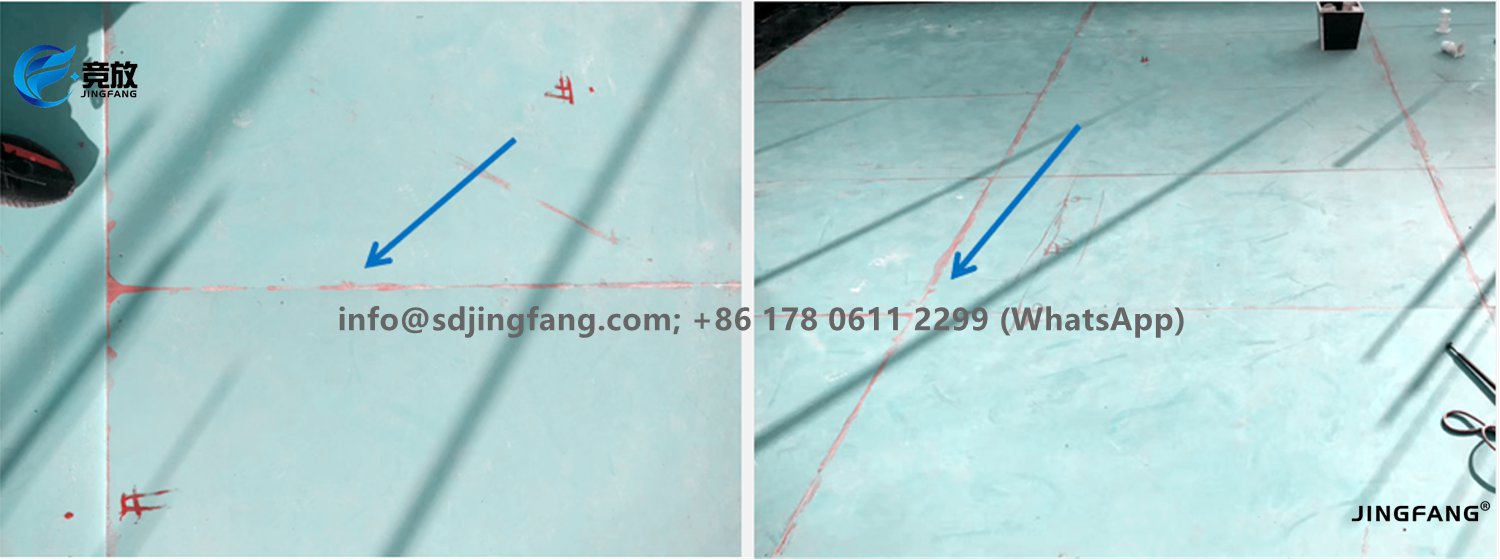

Tip 04: Joint treatment of UPVC plastic formwork

Same as the other formwork materila, if you want to avoid the concrete sticking into the joint, you can paint the joint. The regular painting is workable enough. Some of our clients use the gel coat.

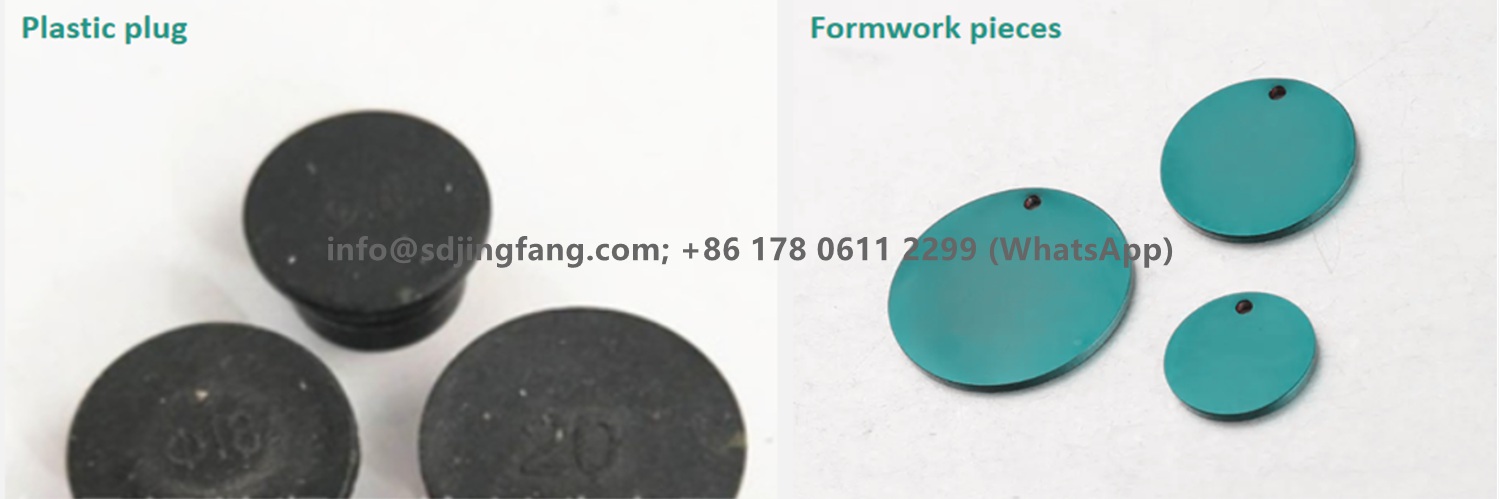

Tip 05:  Repair the holes of nails or bolts

For the nails holes: normally such holes don't leak concrete, so not necessary to fix it. If you have strict requirements, you can use glue or wax to cover them.

For the bolt holes: plastic plug or adhesive tape.

Another solution: normally the bolt holes of one single project have same diameters and locations.

So some clients cut formworks sheets into small round pieces with 1mm smaller diameter, and then insert them into the bolt holes.

Why choose us?

【Focus on UPVC plastic formwork, Building a New Benchmark for Green Formwork and Shoring Systems】

Shandong Jingfang Import and Export Co., Ltd. is an enterprise that integrates research and development, production, sales and export of UPVC plastic formwork, support systems and scaffolding.

As the only factory in China that has consistently used "Virgin & Pure UPVC" as the sole primary raw material for manufacturing UPVC plastic formwork, we always adhere to quality as our core principle.

· "Virgin & Pure UPVC" as the solo primary raw material

· 10+ years manufacturing and export experience

· Strict QC every 1-2 hours during manufacturing

· One of the earliest manufacturers, the only single-minded manufacturer

The content of "Virgin & Pure UPVC" exceeds 95% (the remainder consists of necessary additives). We never add any recycled PVC/PP/ABS materials, nor do we add wood flour.

This core technology ensures our products qualified strength, modulus of elasticity, and UV resistance, fundamentally solving industry pain points such as deformation, cracking, and warping found in substandard products.

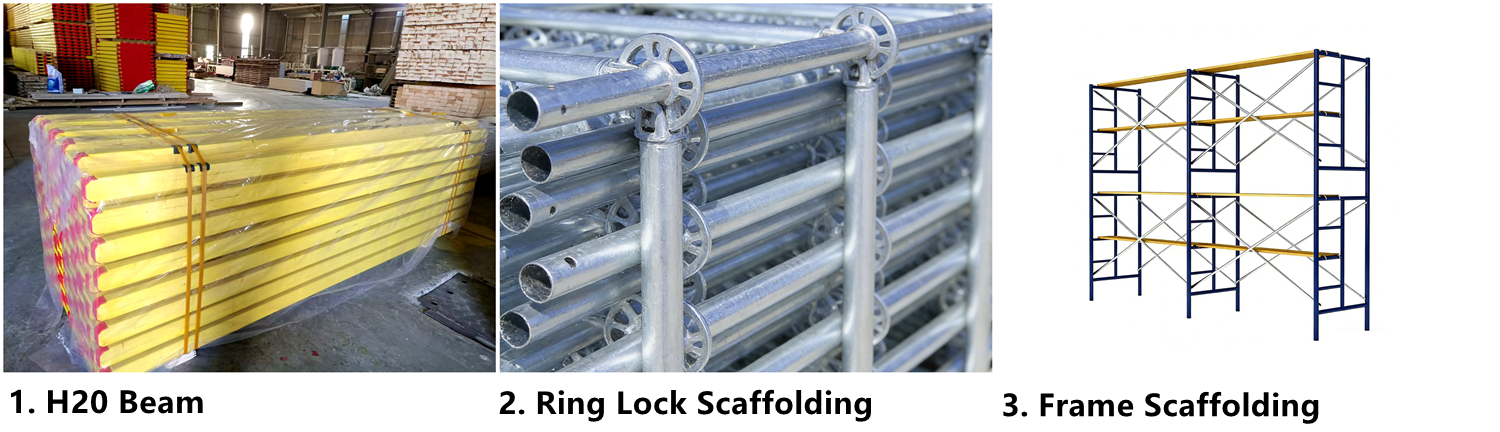

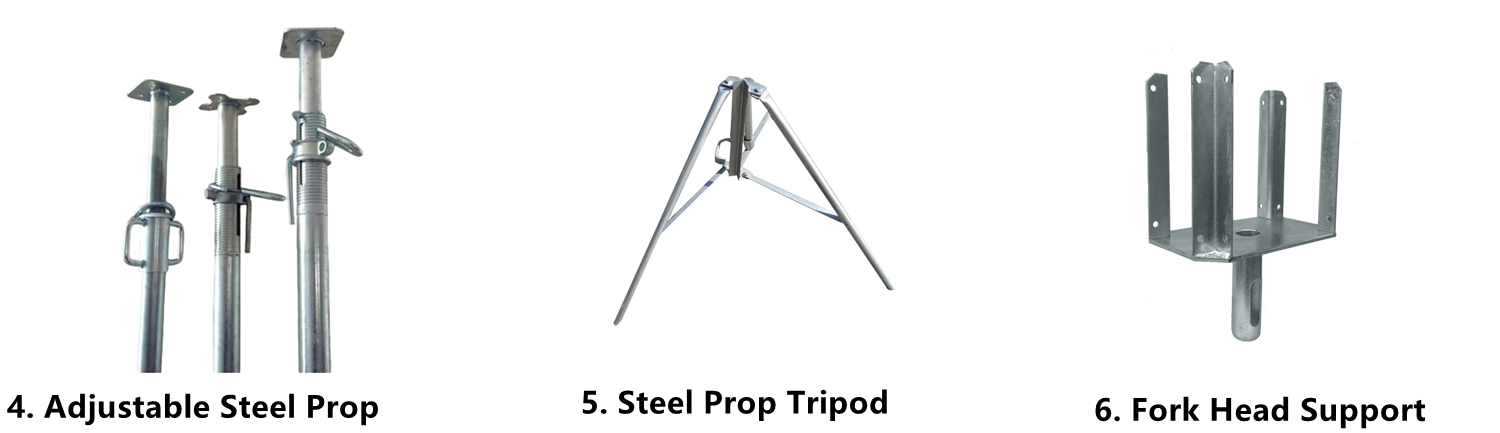

In addition, we also produce a full range of supporting systems, including H20 formwork beams, steel props, tripods, forks and scaffolding.

We are not merely a UPVC plastic formwork manufacturer; we are a comprehensive service provider for formwork and shoring system.

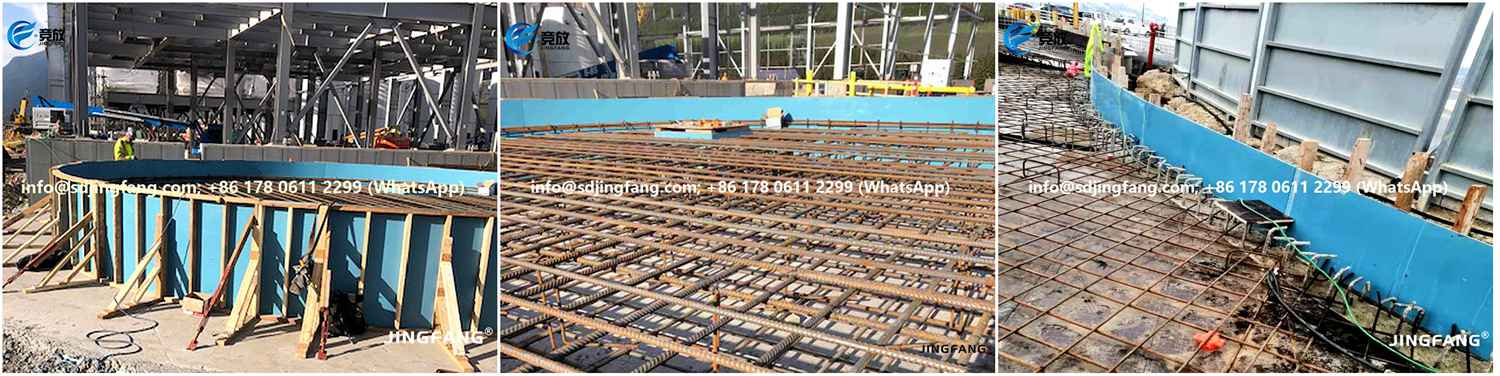

Whether for high-rise residential buildings, bridges and tunnels, or underground utility tunnels, we leverage the combined advantages of "UPVC plastic formwork + complete shoring systems" to deliver tailored formwork solutions that best meet our customers' needs.

Choosing Shandong Jingfang Import and Export Co., Ltd. means choosing the reliable quality forged from "Pure materials" and a solid partner that supports the entire construction process. We look forward to working with you to build the future together.

Freely contact with us for more details. Our international trading team will reply you timely within 24 hours.
