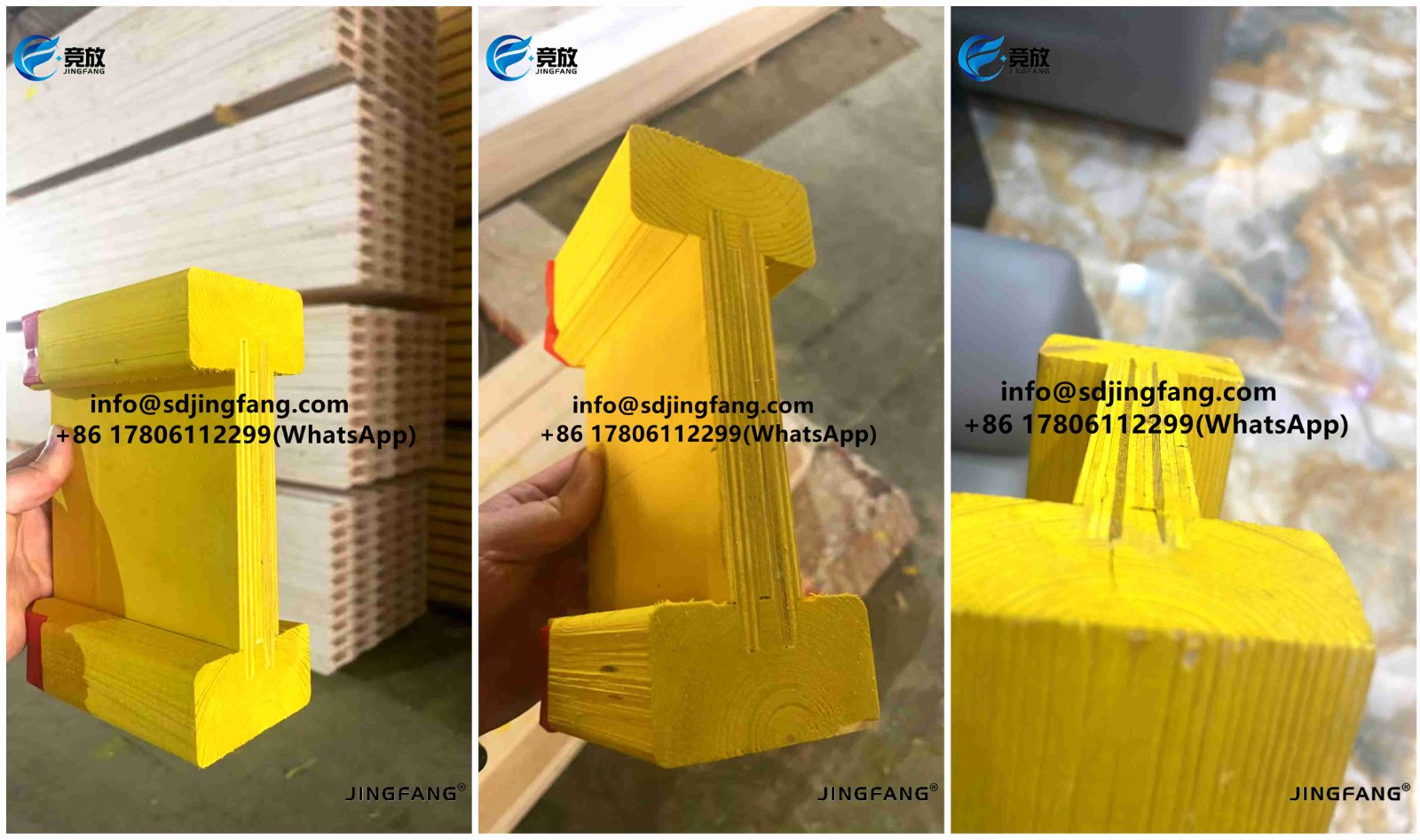

Definition of H20 beams:

H20 beams are high-strength, lightweight timber beams with a double T-section, commonly used in construction for concrete formworks, including walls, slabs, and columns. It's made of Russian fir wood and 27mm Poplar-Eucalyptus Core Plywood. Standard height is 200 mm with a flange width of 80 mm. They are engineered for durability, featuring protective end caps and water-resistant coatings, making them ideal for heavy-load, long-span applications.

Technical specifications of H20 beams:

Main applications of H20 beams:

01. Concrete formwork support:

H20 beams can be widely used formwork system for concrete pouring. Acting as primary and secondary girders, it supports structures such as floor slabs, walls, and beams. Suitable for various formwork systems including scattered installation and removal, single-side formwork, and platform formwork.

02. Bridge Construction:

H20 beams can be used as temporary or permanent supporting structures during bridge construction, especially for the formwork systems and construction platforms of large bridges.

03. Metro and High-Speed Rail Projects:

For the construction of concrete structures in underground stations, tunnels, and elevated lines, H20 beams provide stable and reliable support, meeting the requirements of large spans and heavy loads.

04. Hydropower Stations and Other Large-scale Projects:

H20 beams can be used as template supports for structures such as dams and workshops in water conservancy projects, as well as packaging and support for large-scale mechanical, boiler, and aluminum industry projects.

05. Scaffolding and footplates:

H20 beams can be used as horizontal or vertical components of the scaffolding, as well as the footboards of the construction passage, they provide a safe and durable working platform.

H20 beams with our UPVC plastic formwork for slab:

H20 beams with our UPVC plastic formwork for wall:

Our quality control for H20 beams:

01. The flanges are made of imported Russian fir trees, non-fumigation.

02. On the middle flange, one layer of poplar wood veneer will be applied, which guarantees smooth and flat surface.

03. After gluing together, perform a sanding process, to make the surface be more smooth.

04. We use phenolic glue. Other manufacturers employ melamine glue.

05. Strick quality checking, accurate control.

Packing & container loading of H20 beams:

You can choose bulk loading, or the pallets packing.

About us:

【Focus on UPVC Plastic Formwork, Building a New Benchmark for Green Formwork and Shoring Systems】

Shandong Jingfang Import and Export Co., Ltd. is an enterprise that integrates research and development, production, sales and export of UPVC plastic formwork, support systems and scaffolding. As the only factory in China that has consistently used "Virgin & Pure UPVC" as the sole primary raw material for manufacturing UPVC plastic formwork, we always adhere to quality as our core principle.

· "Virgin & Pure UPVC" as the solo primary raw material

· 10+ years manufacturing and export experience

· Strict QC every 1-2 hours during manufacturing

· One of the earliest manufacturers, the only single-minded manufacturer

The content of "Virgin & Pure UPVC" exceeds 95% (the remainder consists of necessary additives). We never add any recycled PVC/PP/ABS materials, nor do we add wood flour. This core technology ensures our products qualified strength, modulus of elasticity, and UV resistance, fundamentally solving industry pain points such as deformation, cracking, and warping found in substandard products.

In addition, we also produce a full range of supporting systems, including H20 beams, steel props, tripods, forks and scaffolding. We are not merely a UPVC plastic formwork manufacturer; we are a comprehensive service provider for formwork and shoring system.

Whether for high-rise residential buildings, bridges and tunnels, or underground utility tunnels, we leverage the combined advantages of "UPVC plastic formwork + complete shoring systems" to deliver tailored formwork solutions that best meet our customers' needs.

Choosing Shandong Jingfang Import and Export Co., Ltd. means choosing the reliable quality forged from "Pure materials" and a solid partner that supports the entire construction process. We look forward to working with you to build the future together.
